692622030100
Manufacturer:
Wurth Electronics
Mfr.Part #:
692622030100
Datasheet:
Description:

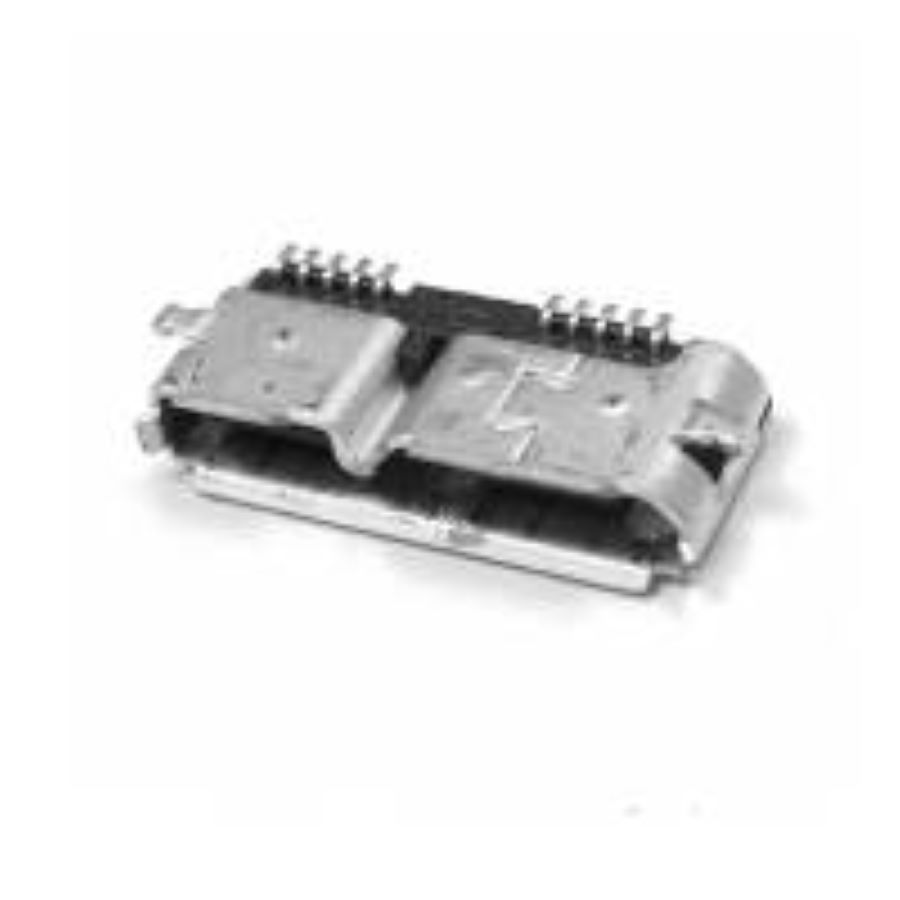

USB Connectors SMD/SMT USB - Micro B Receptacle USB 3.0
| Parameter | Value |
|---|---|
| Length | 12.85 mm |
| Width | 5.6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 30 V |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Features | Shielded |
| Contact Material(Contact Finish) | Bronze |
| Type | USB - Micro B |
| Current Rating | 250 mA |
| Flammability Rating | UL94V-0 |
| Orientation | Horizontal |
| Operating Supply Voltage | 30 V |
| Color | Black |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 10 |
| USB Standard | USB 3.0 |
| Connector Type | Receptacle, Socket, USB |
| Number of Ports | 2 |
| Contact Resistance | 50 mΩ |
| Mounting Angle | Right Angle |
Stock: 1028
Distributors
pcbx
pcbxUnit Price$1.95864
Ext.Price$1.95864
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.95864 | $1.95864 |
| 10 | $1.73380 | $17.33800 |
| 25 | $1.68304 | $42.07600 |
| 50 | $1.63377 | $81.68850 |
| 100 | $1.46450 | $146.45000 |
| 300 | $1.41979 | $425.93700 |
| 500 | $1.37644 | $688.22000 |
| 1000 | $1.16441 | $1164.41000 |
